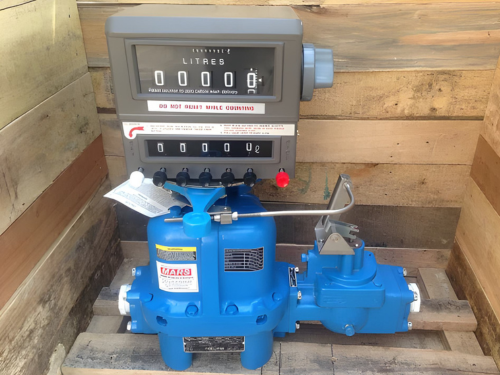

The TCS 682 Series piston flow meter is a true positive displacement flow meter that has an inline design consisting of three (3) reciprocating pistons operating within their respective measuring chambers, where each piston works in a manner similar to an automobile engine. The pistons are fitted to a wobble plate, which has a shaft extending from its upper surface and a valve pivot attached beneath it. The valve pivot drives a sliding valve from the piston to the piston as a known amount of product flows through each cylinder bore, controlling the sequence of events in a smooth mechanical motion. This smooth mechanical motion is then transferred through the drive shaft to the register.

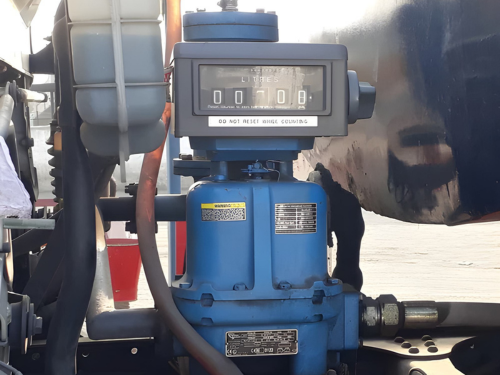

These meters are ideal for vehicles, industrial batching or any other low volume measuring application.
Features:
- Superior Accuracy over the entire flow range
- Low Maintenance
- Long Service Life
- Proven performance and acceptance since 1933
- Wide Viscosity Range – up to 50,000 SSU (11,000 CPS)
- Model approval by the Legal Metrology, Weights & Measures Department, Government of India.
- Worldwide Weights & Measure Approvals including NIST, OIML, NMI, SABS, ATEX-MID and PED Certified
- For Marine applications and the shipping industry – American Bureau of Shipping (ABS) approval.
Design and Rating:
- Reciprocating Three (3) Piston.
- Available Types: SP, SPA, SPD, AF & SS.
- Flow Range: 0.76 to 190 LPM (0.2 to 50 GPM) 250:1 turndown ratio.
- Linear Accuracy: Capable of +/- 0.1% over flow range.
- Repeatability: 0.01%.
- Available Materials of Meter Construction: Aluminum, Ductile Iron & Stainless Steel.
- Available Seals: Viton ®, Teflon ® & Simriz.
