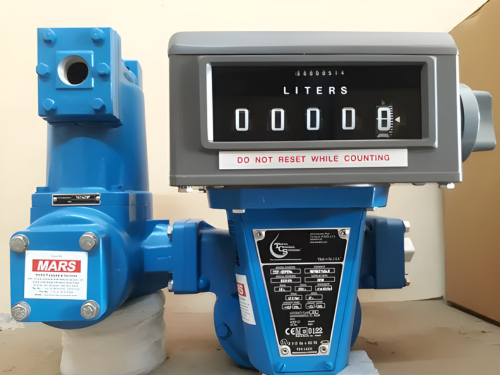

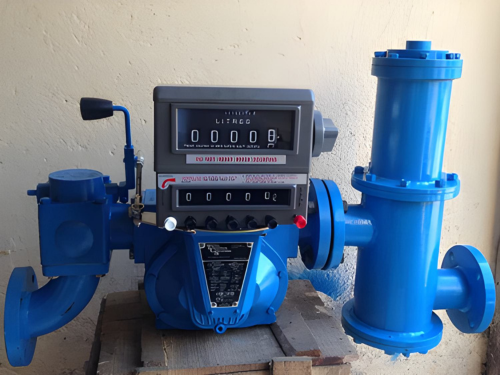

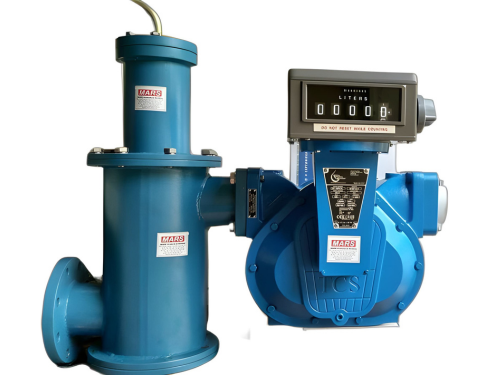

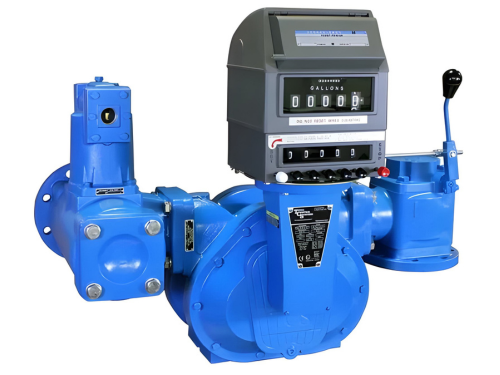

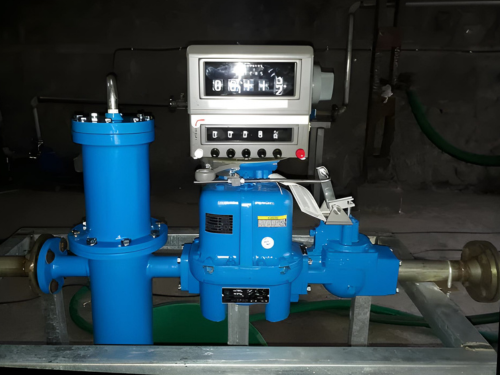

The Positive Displacement Flow Meters & Accessories combines outstanding accuracy (0.1% of flow rate) with one of the widest turndown ratios in the industry (2501). The TCS 682 reciprocating piston flow meter has a rugged industrial design that is tolerant to changing viscosities, temperatures and liquids with suspensions and solids.

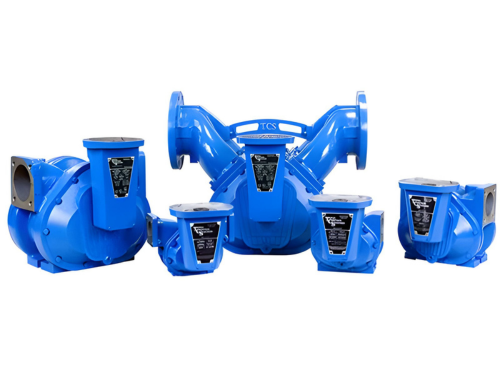

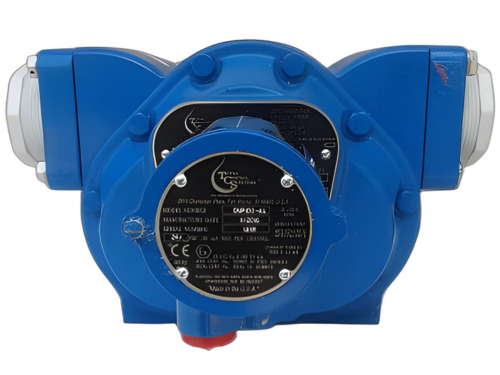

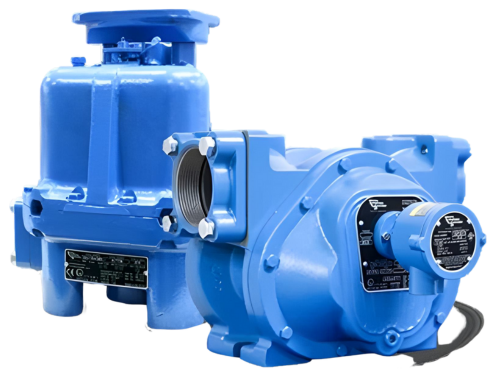

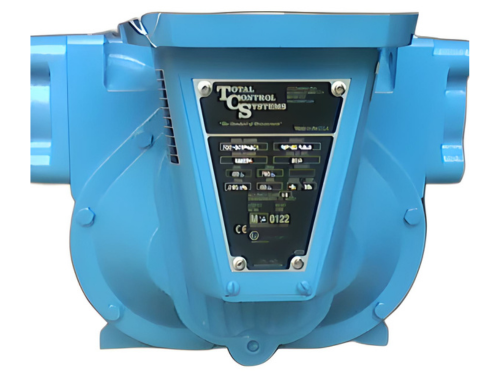

The TCS 682 Series piston flow meter is a true positive displacement flow meter that has an inline design consisting of three (3) reciprocating pistons operating within their respective measuring chambers, where each piston works in a manner similar to an automobile engine. The pistons are fitted to a wobble plate, which has a shaft extending from its upper surface and a valve pivot attached beneath it. The valve pivot drives a sliding vale from piston to piston as a known amount of product flows through each cylinder bore, controlling the sequence of events in a smooth mechanical motion. This smooth mechanical motion is then transferred through the drive shaft to the register.

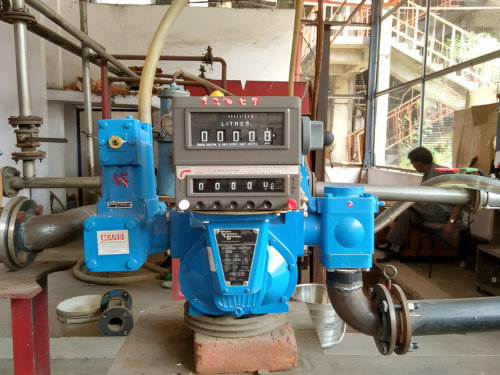

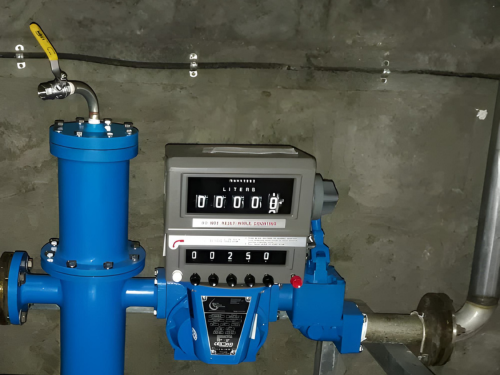

These meters are ideal for vehicles, industrial batching or any other low volume measuring application.
Features:
- Superior Accuracy over the entire flow range
- Low Maintenance
- Long Service Life
