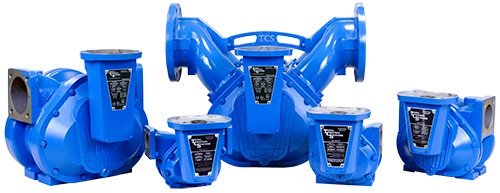

The TCS 700 rotary flow meter combines excellent accuracy with low pressure drop. The TCS 700 rotary flow meter has a compact size and lightweight design that offers minimal maintenance and long service life. This meter is built with advanced materials of construction for a broad range of measurement applications and is accompanied by a full selection of accessories and electronic registration.
The TCS 700 series rotary flow meter has a simple and efficient meter design consisting of a housing and three rotors that rotate in unison within the measuring chamber. The absence of wear, from no metal-to-metal contact within the chamber, eliminates any deterioration in accuracy and provides a long service life.
The rotors are supported by bearings inserted into two bearing plates, where at the end of each rotor shaft is a timing gear. The timed rotation between each rotor is then transferred through the calibration adjuster to the register, giving a consistent and superior measurement of accuracy.
|Meter Model No.||Meter Types Available||Flange Size NPT+*||
|Working Pressure||Working Temperature|
|700-15||SP, SPA, IP, IC||1½”||0.2 to 50||0.76 to 190||150||10.5||-40 to 160||-40 to 71|
|700-20||SP, SPA, SPD, IP, IC, AF, SS||2”||100||38 to 380||150||10.5||-40 to 160||-40 to 71|
|700-25||SPA, SPD||2”||150||38 to 567||150||10.5||-40 to 160||-40 to 71|
|700-30||SP, SPA, SPD, IP, IC, AF||3”||200||75 to 760||150||10.5||-40 to 160||-40 to 71|
|700-35||SPA, SPD||3”||300||75 to 1135||150||10.5||-40 to 160||-40 to 71|
|700-40||SP, SPA, SPD, IP, IC, AF||4”||500||151 to 1893||150||10.5||-40 to 160||-40 to 71|
|700-45||SPA, SPD||4”||600||151 to 2271||150||10.5||-40 to 160||-40 to 71|
|700-60||SPA||6”||800||303 to 3028||150||10.5||-40 to 160||-40 to 71|
|700-65||SPA||6”||1000||380 to 3785||150||10.5||-40 to 160||-40 to 71|
